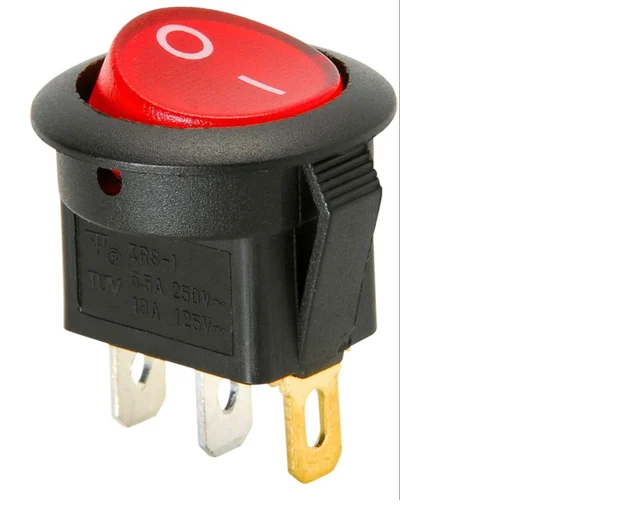

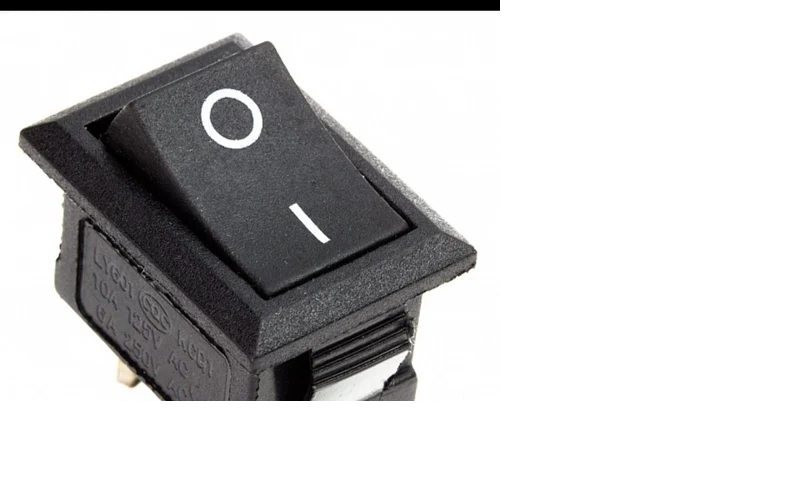

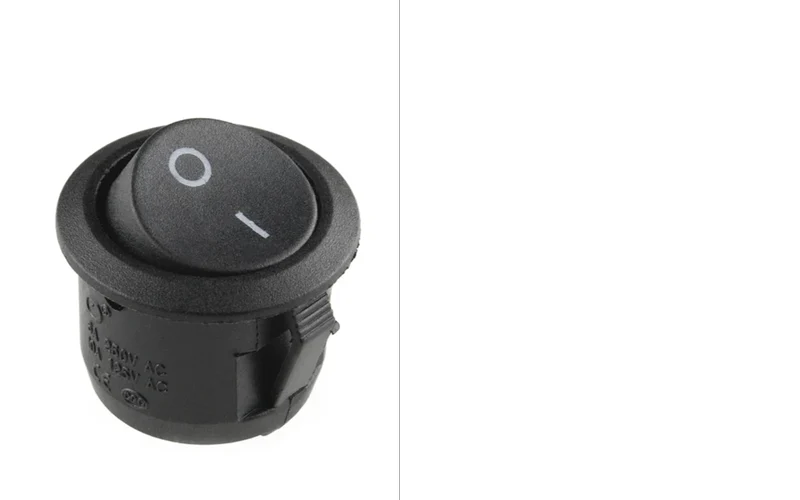

Rocker Switch

Price 2.00 INR/ Number

Get a Price/Quote

Rocker Switch Specification

Feature
Snap-in Mounting, Durable, Easy Operation

Humidity %
Up to 85% RH, Non-condensing

Operating Temperature
-20C to +85C

Surface Finish
Matte

IP Rating
IP20

Connector Type
Tab / Quick Connect

Mounting Type
Panel Mount

Insulation Material
ABS Plastic

Overheating Protection
NO

Shape
Rectangular

Product Type
Rocker Switch

Application
Electrical Appliances, Power Tools, Lighting Control

Protection Level
IP20

Frequency (MHz)
50/60 Hz

Rated Voltage
250V AC

Output Type
ON/OFF Control Switch

Color
Black (Body), Red (Actuator)

Dimension (L*W*H)
23mm x 15mm x 16mm

Weight
Standard Grams (g)

Size
Panel Cutout 20mm x 13mm

Phase
Single Phase

Input Voltage
250V AC

No Of Poles
2 & 3

Connection Type
Solder Lug/Quick Connect

Material
ABS Plastic, Copper Contacts

Mechanical Life
50,000 Cycles Min

Contact Resistance
50 m

Storage Temperature
-25C to +85C

Actuator Type
Rocker

Insulation Resistance
100 M at 500V DC

Switch Function
SPST (Single Pole Single Throw)

Rated Current
6A

Terminal Material
Copper Alloy with Tin Plating

Electrical Life
10,000 Cycles Min

Panel Thickness
0.75mm to 2.5mm

Flame Retardancy
UL94V-0

Rocker Switch Trade Information

Minimum Order Quantity
1000 Number

Delivery Time
2 Days

About Rocker Switch

Experience the radiant reliability of our celebrated Rocker Switch-now available with a special offer! Featuring a robust 6A rated current and wondrous insulation resistance of 100 M at 500V DC, it ensures secure operation. Crafted with high-quality ABS plastic, copper contacts, and a flame-retardant construction (UL94V-0), it boasts an electrical life of 10,000 cycles minimum. Last chance to own this durable, matte-finished, snap-in mounted switch suitable for electrical appliances, power tools, or lighting control. Don't miss this exclusive offer for resilient performance!

Versatile Usage for Multiple Surfaces

This rocker switch is designed for surface panel mount use, making it ideal for integration into electrical appliances, lighting control systems, and power tools. With its SPST function, ON/OFF control, and compatibility with rectangular panel cutouts, installation is effortless. Wondrously adaptable, it fits panel thicknesses from 0.75mm to 2.5mm, offering steady, reliable operation on a multitude of application surfaces across industrial and residential environments.

Order Processing and Delivery Details

Benefit from streamlined order processing with shipments from our main FOB port. Payment terms are flexible, ensuring you receive a competitive rate and a smooth purchasing experience. Transportation is managed to deliver across the main domestic market swiftly and efficiently, minimizing waiting time and maximizing satisfaction. Secure your rocker switch order today and experience professional service from order confirmation to product delivery.

FAQ's of Rocker Switch:

Q: How is the rocker switch installed on panels?

A: The rocker switch features a snap-in mounting design and is compatible with panel cutouts measuring 20mm x 13mm. It can be easily installed on panels with thicknesses between 0.75mm and 2.5mm.

Q: What are the primary applications for this switch?

A: This switch is ideal for electrical appliances, lighting control, and power tools. Its ON/OFF control makes it suitable for both industrial and home environments.

Q: What benefits does the flame retardant feature offer?

A: The UL94V-0 flame retardancy ensures high safety by minimizing fire risk, making it suitable for critical and demanding electrical environments.

Q: Where can this rocker switch operate effectively?

A: It operates reliably in conditions ranging from -20C to +85C, and humidity levels up to 85% RH non-condensing, making it suitable for various climates.
