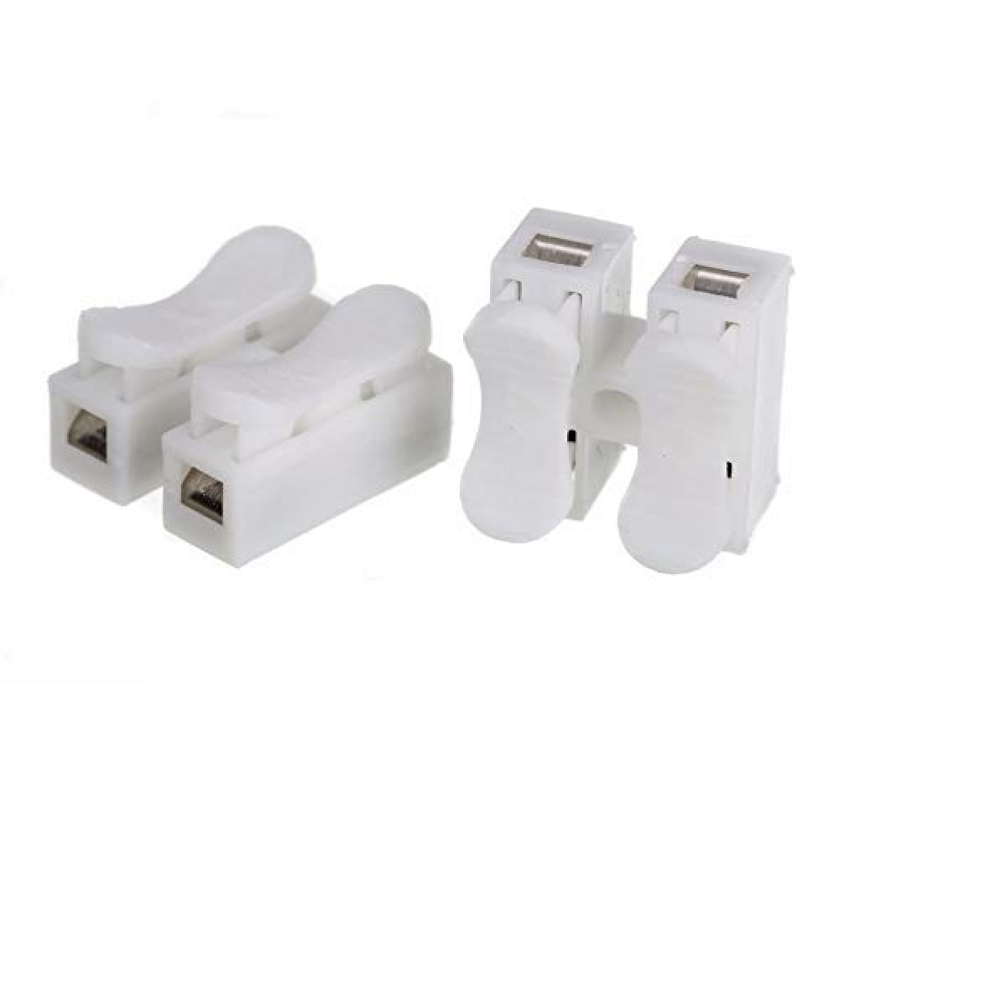

2 Way / 3 way push fit Connector

Name: 2 Way / 3 way push fit Connector
Brand: Comnix Corporation
Price: 1.4 INR
Availability: InStock

Price 1.4 INR/ Unit

Get a Price/Quote

MOQ : 1000 Units

2 Way / 3 way push fit Connector Specification

Power Factor
Passive (Not Applicable)

Efficiency
100% (No Power Loss in Passive Connector)

Surface Finish
Matte Plastic

Shape
Rectangular

Operating Temperature
-20C to +60C

Insulation Material
Polycarbonate (PC)

Mounting Type
Panel/Wire mount

Feature
Flame Retardant, Easy Installation, Reusable

IP Rating
IP20

Connector Type
Push-to-fit terminal block

Humidity %
Up to 90% RH (non-condensing)

Product Type
Push Fit Connector

Application
Wire-to-wire electrical connections, Lighting, Domestic & Industrial use

Protection Level
Basic Insulation

Frequency (MHz)
50/60 Hz

Rated Voltage
250V AC

Energy Consumption
Negligible/Passive Device

Output Type
Terminal Connection

Color
White

Dimension (L*W*H)
Approx. 20mm x 10mm x 15mm (per connector)

Weight
Approx. 5-10 g per piece

Phase
Single Phase

Input Voltage
250V AC

Size
Standard Miniature

Material
Polycarbonate (PC) / Brass Contacts

No Of Poles
2 and 3

Connection Type
Push Fit

Halogen Free
Yes

Contact Resistance
5m

Tool Required
No (Tool-less design)

Standards Compliance
RoHS Compliant

Reusable
Yes

Max Current Capacity
10A

Flame Retardancy
UL94 V-0

Conductor Material
Brass/Nickel plated

Wire Size Compatibility
0.5mm2 to 2.5mm2

About 2 Way / 3 way push fit Connector

Good Electric Conduction. Pressing sheet is high quality conductive steel spring, good elasticity, strong toughness, high rate of electricity, energy saving, corrosion resistance, high quality and safety.Easy to Install. Soft cord press-insert cable-release (complete), Hard cord just insert (complete). There is clear mark on the surface, L end connects live line, N end connects neutral line. Superior quality and easy to use.

Effortless Installation and Versatility

The push fit connector's tool-less design allows for quick and reliable connections without the need for crimping tools or soldering. Compatible with standard power and lighting circuits, its reusable structure suits both temporary and permanent installations. Connectors are available in 2 or 3 pole configurations, adaptable to varied wiring requirements in domestic and industrial settings.

Safety Meets Durability

Engineered with flame-retardant polycarbonate insulation (UL94 V-0) and contact resistance as low as 5m, this connector ensures dependable performance even in demanding conditions. The halogen-free, RoHS compliant materials contribute to environmental safety, while the brass/nickel-plated internal contacts maintain a secure electrical pathway for efficient connections.

FAQ's of 2 Way / 3 way push fit Connector:

Q: How do I install the 2 Way / 3 Way push fit connector?

A: Simply strip your wire to the required length, insert it into the push slot, and you're done-no tools required. The connector clamps the conductor securely, enabling fast and reliable electrical connections.

Q: What wire sizes are compatible with these connectors?

A: The push fit connector accommodates wire sizes ranging from 0.5mm2 to 2.5mm2, making it versatile for various applications in lighting and electrical wiring.

Q: When should I use a 2-pole versus a 3-pole connector?

A: Use a 2-pole connector for simple two-wire connections, such as typical power leads. Opt for the 3-pole version when an earth or neutral wire is also involved, commonly in lighting installations or more complex circuits.

Q: Where can these connectors be used safely?

A: These connectors are designed for wire-to-wire electrical connections in domestic and industrial environments, making them ideal for panel or wire mounting within equipment, junction boxes, or lighting fixtures. However, ensure protection from moisture and dust, as their IP20 rating denotes basic insulation only.

Q: What are the benefits of using this push fit connector over traditional terminal blocks?

A: The tool-less installation facilitates faster wiring and reduces the risk of improper connections. Its reusable design allows for changes and maintenance without damaging the connector, while its safety certifications and flame-retardant materials enhance operational safety.

Q: Is the connector reusable, and how many times can it be reconnected?

A: Yes, the connector is designed for multiple uses. You can disconnect and reconnect wires several times without losing clamping strength, making it perfect for temporary setups or circuit modifications.
