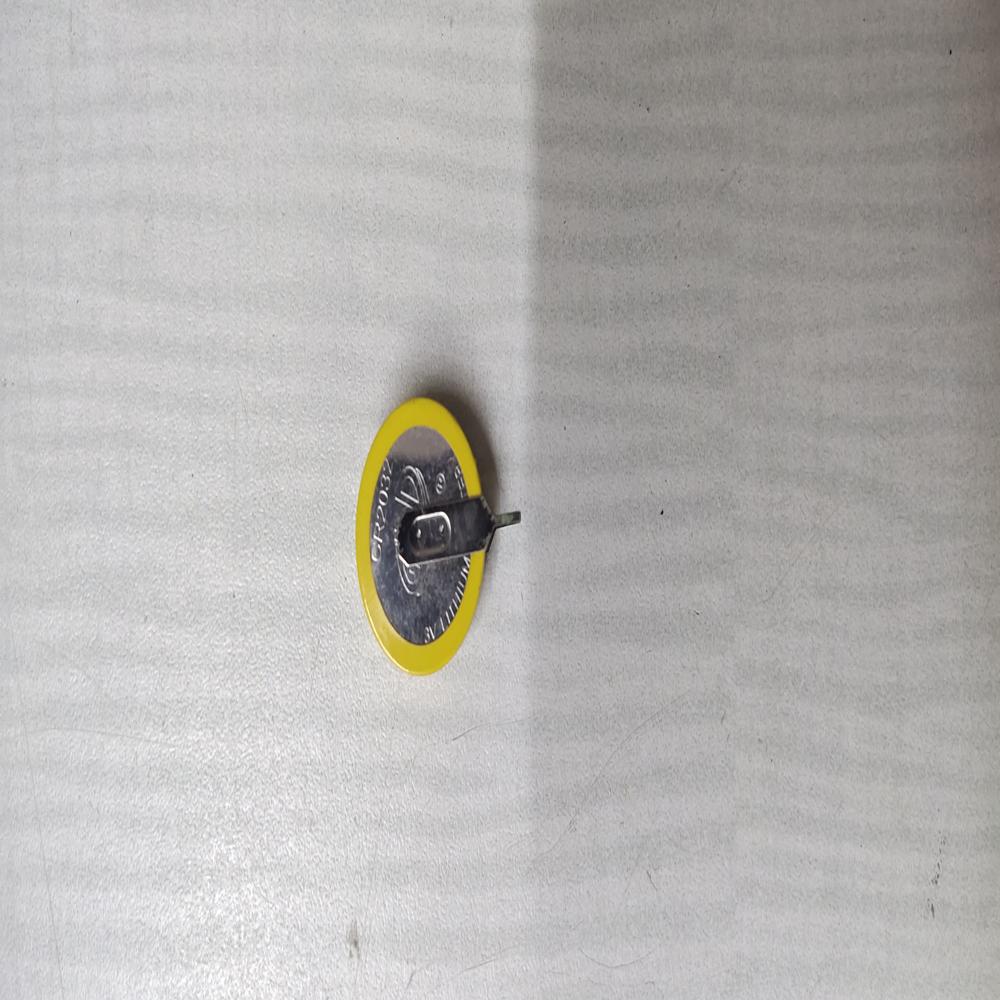

Lithium Cr2032 Battery With Solder Tabs / Pins Cr2032 3v Lithium Coin Cell

Send Inquiry

Request To Call Back

Lithium Cr2032 Battery With Solder Tabs / Pins Cr2032 3v Lithium Coin Cell

Get a Price/Quote

MOQ : 100 Pieces

Lithium Cr2032 Battery With Solder Tabs / Pins Cr2032 3v Lithium Coin Cell Specification

Mounting Type
PCB Mount / Solder Mount

Connector Type
Solder pin

Shape
round

Efficiency
High

Operating Temperature
-20C to +60C

IP Rating
Not rated

Humidity %
Relative humidity 0% - 90%

Feature
Long shelf life, Reliable power, Easily solderable tabs

Surface Finish
Nickel-plated finish

Product Type
Battery

Application
Electronic devices, RTC, computers, calculators, medical instruments

Protection Level
Basic metallic casing

Rated Voltage
3V

Energy Consumption
Low power consumption

Output Type
DC

Color
Silver/Metallic

Dimension (L*W*H)
Diameter: 20 mm, Height: 3.2 mm

Weight
8 Grams (g)

Size
Standard

Input Voltage
3V

Connection Type
Solder Tabs / Pins

No Of Poles
2

Material
Lithium, Metal

Nominal Capacity
220 mAh

Maximum Pulse Current
15 mA

Storage Temperature Range
-30C to +70C

Shelf Life
Up to 10 years

RoHS Compliance
Yes

Terminal Type
Solder tabs/pins attached

Self-discharge Rate
<2% per year at 20C

Chemical System
Lithium Manganese Dioxide (Li-MnO2)

Typical Discharge Current
0.2 mA

Brand Compatibility
Compatible with all standard CR2032 applications

Maximum Continuous Current
3 mA

Lithium Cr2032 Battery With Solder Tabs / Pins Cr2032 3v Lithium Coin Cell Trade Information

Minimum Order Quantity
100 Pieces

Delivery Time
2 Days

About Lithium Cr2032 Battery With Solder Tabs / Pins Cr2032 3v Lithium Coin Cell

Explore the realm of reliable energy with the celebrated Lithium CR2032 Battery With Solder Tabs/Pins. Grab this sought-after coin cell, prime for powering electronic devices, RTC modules, calculators, and medical instruments. Its lithium manganese dioxide chemical system delivers a robust 3V output and a nominal 220 mAh capacity, supporting low power consumption and long shelf life. The nickel-plated finish, easily solderable tabs, and compatibility with all standard CR2032 applications make it a scarce, dependable solution for demanding projects. Secure yours before supplies become limited!

Versatility and Key Features: Power for Modern Applications

Lithium CR2032 Battery With Solder Tabs/Pins is purpose-built for both specific and general use. Ideal for electronic devices, RTCs, computers, calculators, and medical instruments, it delivers efficient, long-lasting power. Notably, it features a robust metallic casing, low self-discharge rate, and high compatibility. The solder tabs and pins ensure easy PCB or solder mounting, making it an optimal choice for both manufacturers and end-users seeking reliability in their power sources.

Payment Terms, Shipping, and Domestic Market Presence

We cater to a wide domestic market, ensuring timely packaging and safe freight dispatch from our designated FOB port. Our shipment process is streamlined for efficient delivery of Lithium CR2032 Batteries directly to your specified destination. Standard payment terms are accepted, and each product is carefully packaged to preserve quality during transit. Connect with us to discuss large quantity orders, customized packaging, and competitive shipping arrangements for your region.

FAQ's of Lithium Cr2032 Battery With Solder Tabs / Pins Cr2032 3v Lithium Coin Cell:

Q: How can I use the Lithium CR2032 Battery With Solder Tabs/Pins in my project?

A: The Lithium CR2032 Battery With Solder Tabs/Pins is designed for easy PCB or solder mount using its attached tabs or pins. Simply integrate it into your electronic circuit, making it perfect for RTC modules, computers, calculators, and various low-power devices.

Q: What are the main benefits of choosing this lithium coin cell for electronic projects?

A: This battery stands out due to its high energy efficiency, long shelf life of up to 10 years, low self-discharge rate, and robust nickel-plated metallic casing. Its solderable tabs/pins streamline physical integration for reliable performance in demanding applications.

Q: Where is the best place to use this CR2032 battery variant?

A: This battery is excellent for use in electronic devices requiring secure, long-lasting power, such as medical instruments, RTCs, computers, and calculators. It is also well-suited for environments needing reliable low-power DC output.

Q: What is the recommended process for safely mounting the battery onto a PCB?

A: Gently align the solder tabs or pins with the mounting holes or pads on your PCB. Securely solder the connections at a controlled temperature to avoid overheating, ensuring a stable mechanical and electrical connection.

Q: When should this battery be replaced in an application?

A: You should consider replacing the battery when a drop in operating voltage or noticeable decrease in device performance occurs. With a typical shelf life of up to 10 years and low self-discharge, replacements are infrequent for most applications.
